TUTORIAL: How to Program ESP8266 ESP-01 Module with Arduino UNO

We are going to see how to program ESP8266 ESP-01 module using an Arduino UNO with few very simple steps.

Note:

Download and install Blynk libraries to your Arduino IDE its very important before programming (Search on YouTube you can find easily).

Step 1:

Connections for programming

ESP8266:————– >Arduino:

GND ————————– GND

GPIO-2 ————————– Not connected (open)

GPIO-0 ————————– GND

RXD ————————– RX

TXD ————————– TX

CHPD ———————— 3.3V

RST ————————– Not connected (open) *(Read Below Instruction)

VCC ————————– 3.3V

Very Important Instruction:

Now before hitting upload, take GPIO-0 to ground.

And RST to ground afterwards, remove RST after half a second (the blue LED flashes for some millisecond).

Hit upload, the blue flashes once and then blinks till it gets uploaded.

Now you are all done.

Programming Procedure ESP-01 with ARDUINO UNO R3

Step 2:

After programming, remove the serial Arduino cable and plug it again and take out GPIO-0 from GND and just interchange the connection of RX and TX that is RX connect to TX and TX connect to RX.

Connections after programming

ESP8266:————– >Arduino:

GND ————————– GND

GPIO-2 ————————– Not connected (open)

GPIO-0 ————————– Not connected (open)

RXD ————————– TX

TXD ————————– RX

CHPD ———————— 3.3V

RST ————————– Not connected (open)

VCC ————————– 3.3V

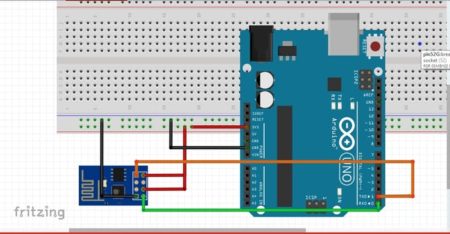

After Programming Connections ESP01 with arduino uno Maroc — After Programming Connections.

That’s it, you are done!!!

Open serial monitor of Arduino IDE where you see the ESP is connected and ready.

ESP8266 is online arduino IDE program — ESP is online

CODE

Blynk Simple codeC/C++

Download and Install Blynk libraries to your Arduino Board its very important before programming (Search on

Youtube you can find easily). Plus d’information visite notre page Facebook.

/*

* Code d'exemple pour un module WiFi ESP-01.
* Réaliser par Micro-Electroniques Générales au Maroc
* Visite notre site megma.ma

*/

#define BLYNK_PRINT Serial
#include <ESP8266_Lib.h>
#include <BlynkSimpleShieldEsp8266.h>
#include <SoftwareSerial.h>
#define ESP8266_BAUD 9600

char auth[] = "6bae2d0e7bfa4b6096feeaffa2030e4f";
char ssid[] = "Enter wiFi Name"; //You can replace the wifi name to your wifi

char pass[] = "Password";  //Type password of your wifi.

SoftwareSerial EspSerial(2, 3); // RX, TX
WidgetLCD lcd(V0);

ESP8266 wifi(&EspSerial);

void setup()
{

  Serial.begin(9600);
  EspSerial.begin(ESP8266_BAUD);
  Blynk.begin(auth, wifi, ssid, pass);
   lcd.clear();
 lcd.print(1, 1, "IoT");
}

void loop()
{
  Blynk.run();
}
